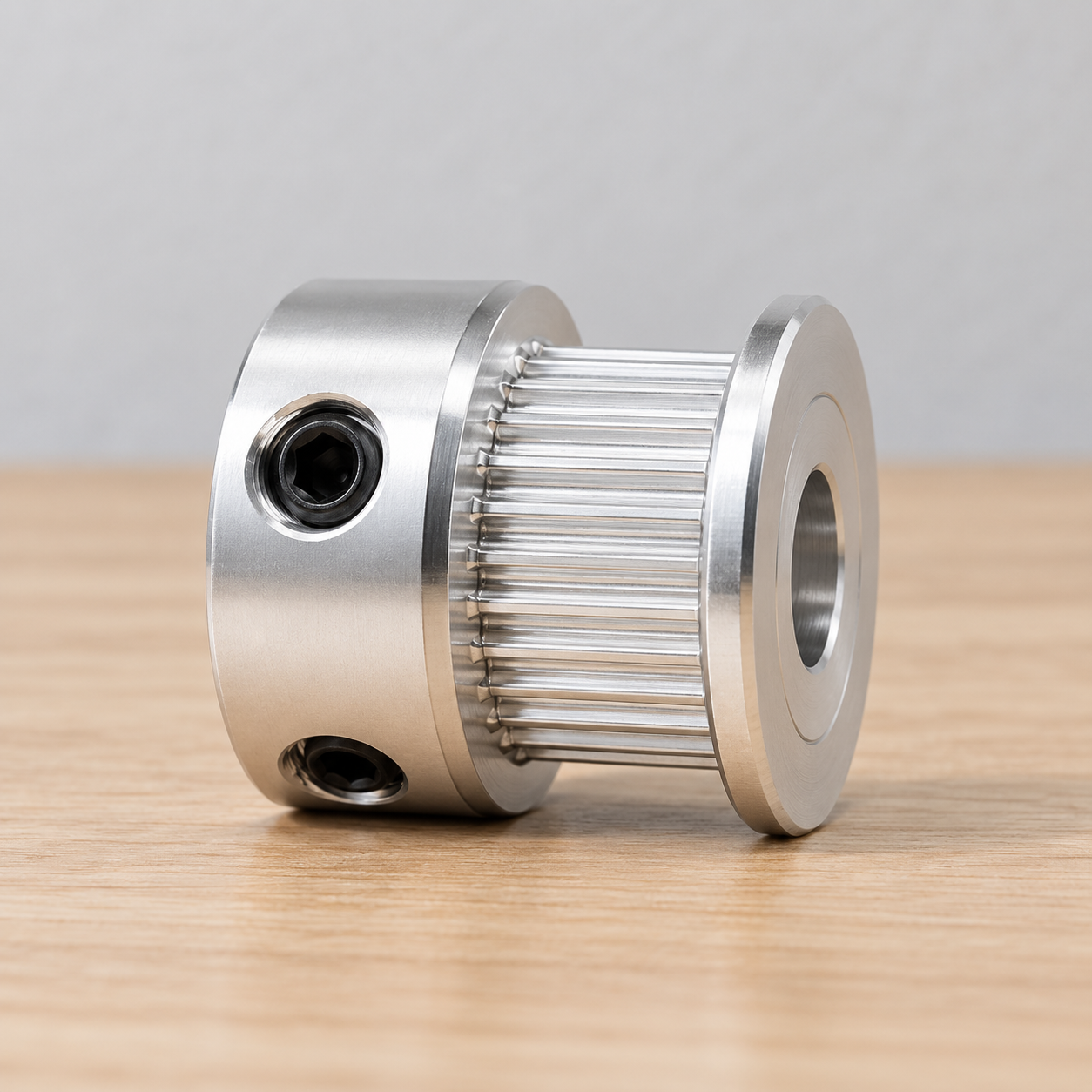

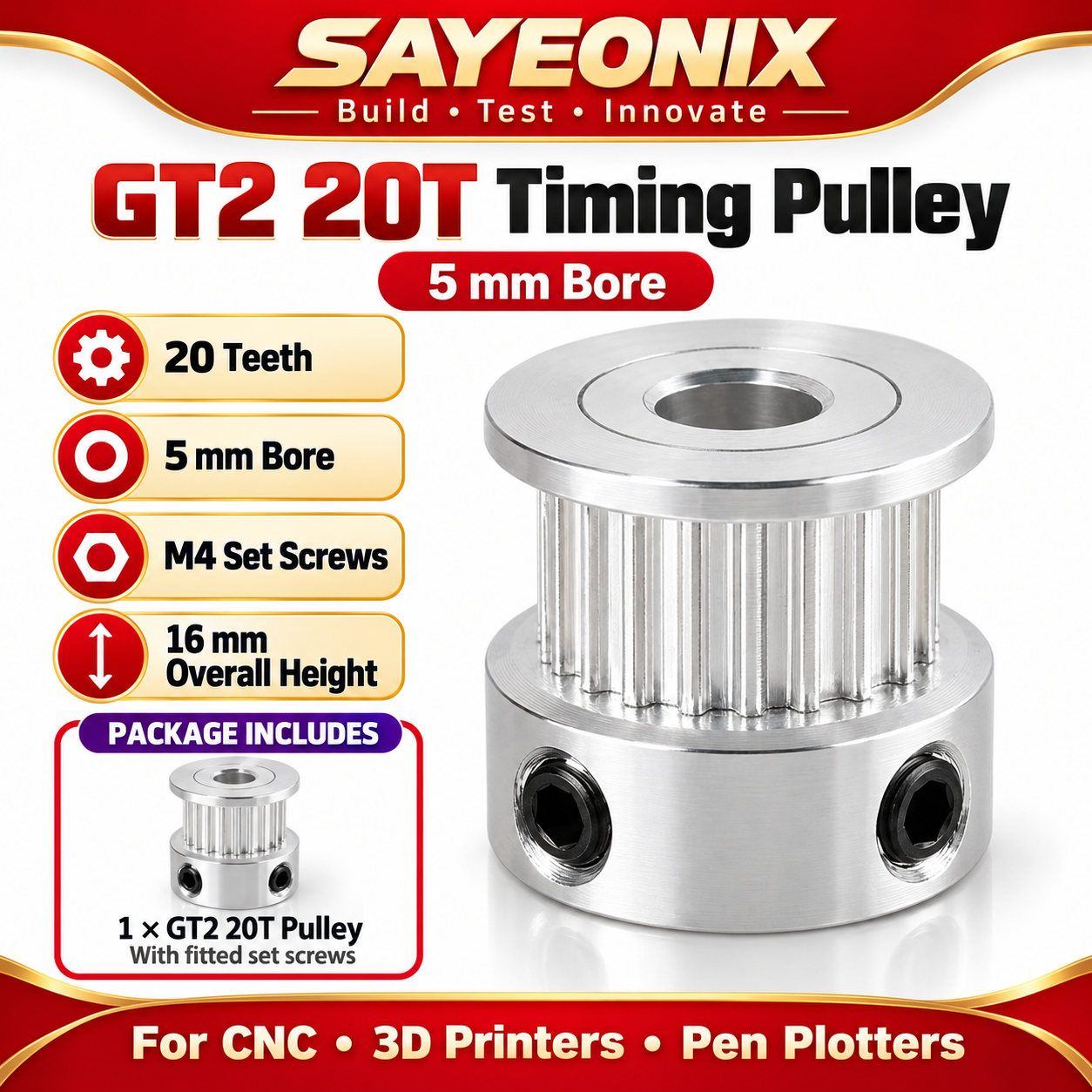

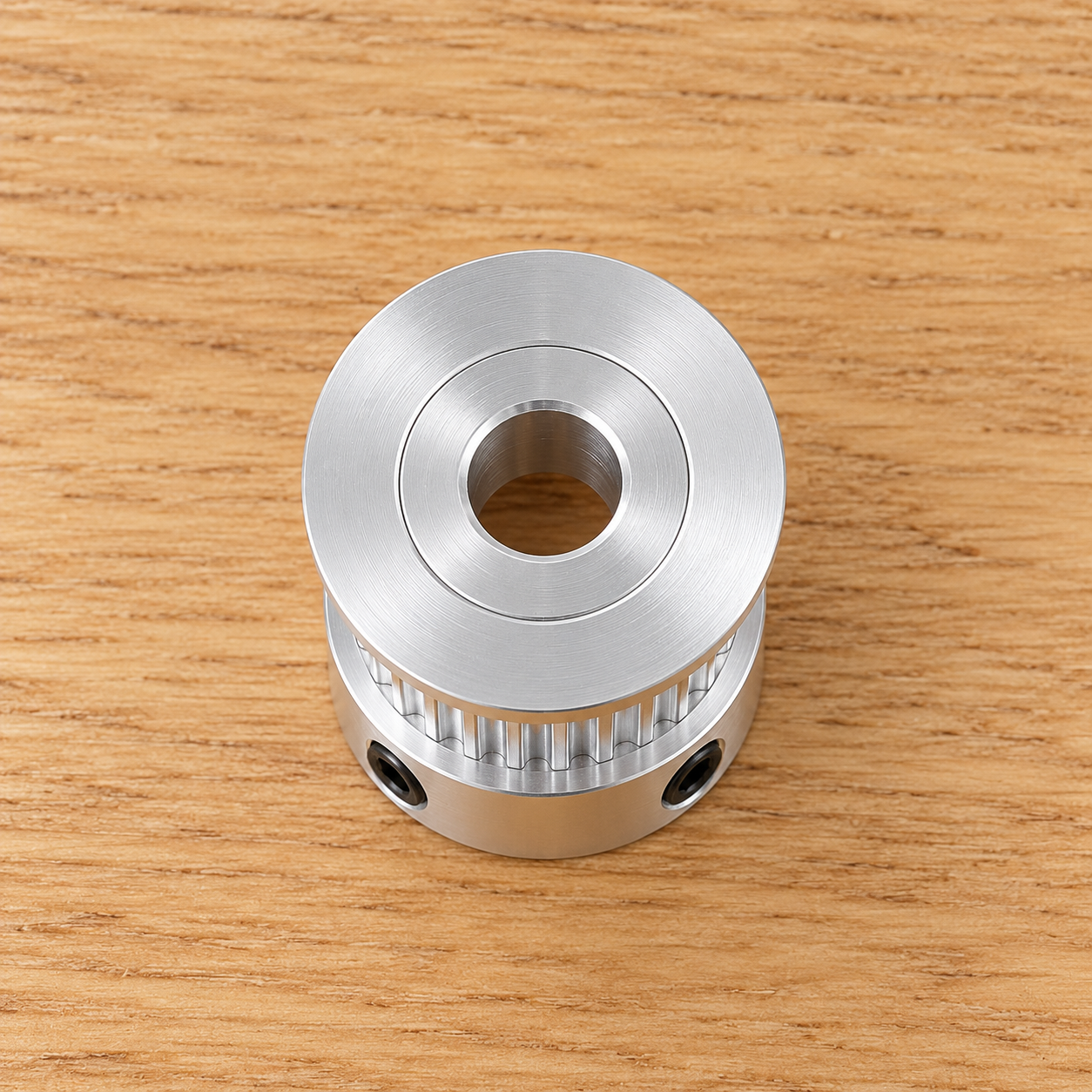

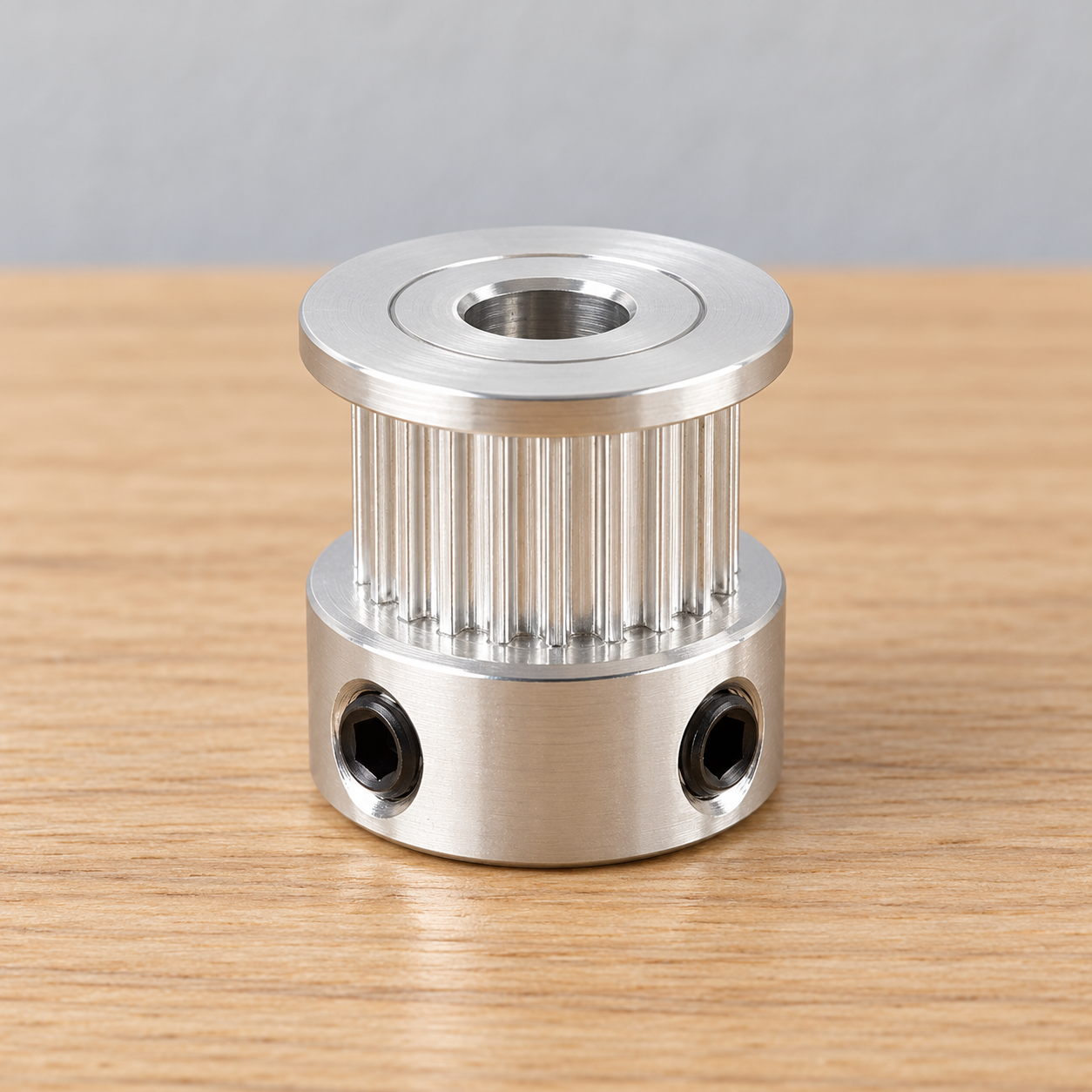

GT2 20-Tooth Timing Pulley — 5mm Bore with M4 Set Screws

Description

**Specification Table**

| Specification | Details |
|—|—|
| Product type | Timing belt drive pulley |
| Tooth profile | GT2 |
| Number of teeth | 20 |
| Shaft bore diameter | 5 mm |
| Overall height | 16 mm |
| Outer flange diameter | 16 mm |
| Toothed section diameter | 12 mm, as labelled in the reference |
| Toothed section width | 7.5 mm |
| Set screw size | M4 |
| Set screws shown | 2, fitted in the hub |
| Design | Flanged pulley with shaft-locking hub |
| Colour / finish | Silver metallic finish |
| Dimensions source | Supplied product diagram |

**Package Contents — Based on the Reference**

– 1 × GT2 20-Tooth Timing Pulley, 5mm Bore
– 2 × M4 Set Screws, fitted in the pulley

Belt, motor and tools are not included.

**Installation Note**

Match the pulley to your belt and shaft before fitting. The 7.5mm measurement refers to the pulley’s toothed section width, not the belt width.
